36" TsuMura LIGHT WEIGHT Guide Bar 3/8-063-119DL Makita Husqvarna Jonsered

  • Sale
  • Regular price $164.98

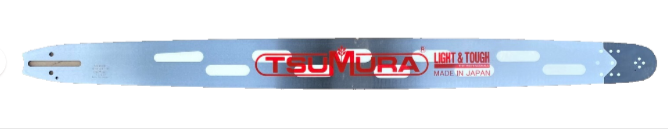

This is a new 36" TsuMura LIGHT WEIGHT professional guide bar, the bar is 3/8" pitch, .063 gauge and uses a 119-drive link chain. This LIGHT WEIGHT guide bar is 20% lighter than a standard bar of this size. The guide bar is built with staggered, dove-tailed notches that are packed with hard resin which reduces the weight by 20%.

  • This guide bar fits the following brands and models and works with a 3/8" pitch sprocket on the saw and replaces Oregon part number 363RNDD009.


    • Husqvarna: 1100 CD, 160, 162, 181, 185, 2100 CD, 2101, 266 XP, 268, 272 XP, 281, 285, 288 XP, 298, 3120 XP, 362 (9mm Studs), 365, 371 XP, 372 XP, 380, 385 XP, 390 XP, 394 XP, 395 XP, 465 Rancher, 480 CD, 562 XP, 565, 570, 572 XP, 575 XP, 576 XP, 61, 65, 66, 70, 77
    • Dolmar: PS-6400, PS-6400 H, PS-6400 W, PS-7300, PS-7300 H, PS-7300 W, PS-7310, PS-7300 H, PS-7310 W, PS-7900, PS-7900 H, PS-7900 W, PS-7910, PS-7910 H, PS-7910 W, PS-9000, PS-9010, PS-9010F
    • Echo: CS-7310P, CS-7310PW
    • Efco: 181, MT 6500, MT 7200, MT 8200
    • Farmertec Holzfforma 65cc G372, 71cc G372XP, G372XT
    • Jonsered: 2065, 2071, 2077, 2083, 2094, 2095, 2165, 2171, 2186, 625, 630, 670, CS 2165, CS 2166, CS 2171, CS 2172, CS 2186, CS 2188, Ripping Mill
    • Makita: DCS 6400,DCS6401, DCS 6420, DCS 6421,DCS6800, DCS7300, DCS7301, DCS 7900, DCS7901, DCS9000, DCS9010FL
    • Partner: 1655, 2055, 550, 650, 7000, P-100, P-55, P-65, P-70, P-85, R-11, R-12, R-14, R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416, R-420, R-421, R-435, R-440, S-50, S-55, S-65
    • Poulan/PoulanPRO: 415, 425, 445, 475, 505, PRO415
    • RedMax : GZ7000, GZ7100, GZ9000
    • Shindaiwa (SDK): 550, 575, 577, 680, 695, 757
    • Solo: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694


    • Made from the finest quality, high-carbon tool steel.
    • Sprocket Tips feature large-diameter sprockets encased by heat-treated carbon steel.
    • Solid one-piece milled high-carbon steel bar that has a brushed steel finish.
    • Rails are precision-ground to uniform tolerance.
    • Longer tip reduces chain "hammering" of bar rails for longer bar life.
    • The TsuMura Pro "FV" tip has been engineered to provide long service life, with a thick sprocket and strong cogs that stand up to hard use and extreme temperatures.
    • The sprocket tip is firmly held by three rivets and is recessed into the bar body for excellent stability and accurate chain feeding.
